جزئیات محصول:
|
| Brand: | AUO | Diagonal Size: | 13.9" |
|---|---|---|---|
| Resolution: | 3300(RGB)×2200 | Luminance: | 500 cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Color Depth: | 16.7M 100% DCI-P3 |
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|

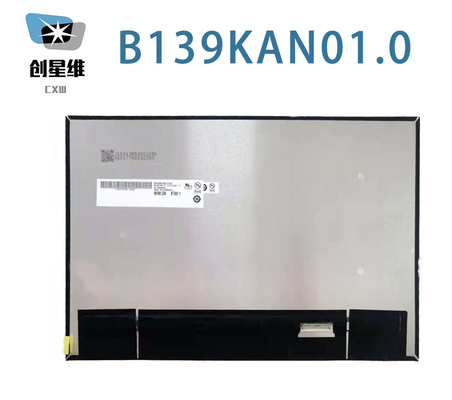

| B139KAN01.0 | LTPS TFT-LCD , LCM | AUO1A94 | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 500 (Typ.) | 89/89/89/89 (Typ.)(CR≥10) | - | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | AHVA, Normally Black, Transmissive | 1500 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| - | 16.7M (8-bit) |
| Panel Size : | 13.9" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 3300(RGB)×2200 | RGB Vertical Stripe | - | - | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | - | 15:10 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| - | - | Glare (Haze 0%) | ||
whose pixels are arranged in RGB Vertical Stripe., with surface treament of Glare (Haze 0%). As a AHVA, Normally Black, Transmissive LCM product, B139KAN01.0 can provides 500 cd/m² display brightness 1500:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (DCI-P3). For more latest product detail of B139KAN01.0 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with AUO or it's distributor.
